Nr. Udhyogeshwar Mahadev Mandir, Bombay Conductor, Vatva, G.I.D.C. Road, Ahmedabad 382445, Gujarat-India
If you operate an industry such as cement,ceramic, food & beverage, aggregates or oil & gas, where high efficient material flow is essential for maximizing process output. You may try incorporating of industrial vibrators i.e. Electromagnetic hammers from the Ambica electricals, only for best results.
When it comes to Hammering devices, a “one size fits all” solution rarely delivers an acceptable outcome. If you choose these products, there’s a good chance you will experience issues such as blockages and build-up that can severely inhibit material flow.
In many situations, custom-built industrial Electromagnetic hammer will out-perform any stock solution you’ll find at a high-volume manufacturers.
Since 1998, AMBICA ELECTRICALS has been providing effective material flow solutions encompassing a wide variety of industries and applications. Our ability to develop custom vibration solutions tailored to the specific needs of our customers sets us apart from other companies in our industry. Our extensive product line includes variety of electromagnetic hammers.

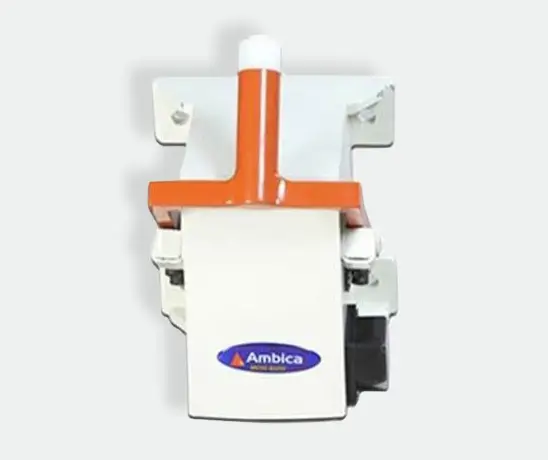

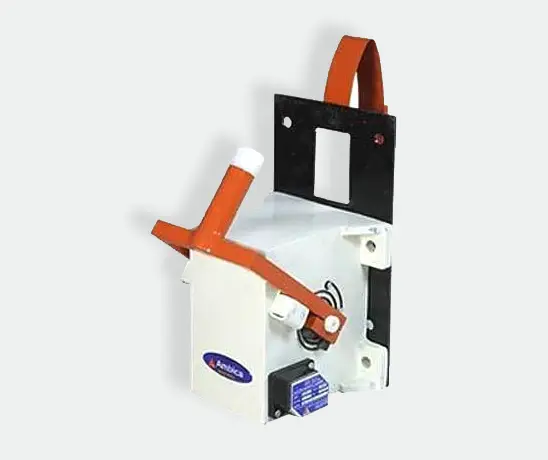

Electromagnetic Hammer consists of a stator and rotor, which are made out of high grade strip lamination to minimize iron losses. The part movement of the rotor shaft directly transmitted to hammer stoker Electronic controller controls the excitation of hammer coil.
It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged.
Chamber Plate Thickness more than 3 mm & Maximum 4mm
| Rated Voltage | 400 V AC, 50 Hz |
| Operating Voltage Range | 380 V – 460 V |
| Rated Pulse Current | 4.2 Amp |
| Power Consumption @ 10 Strokes/min | 0.003 Units/Hr. |
| Impact Force | 70 Kg (min) |
| Weight | 15 Kg |
Chamber Plate Thickness more than 5 mm & Maximum 8mm
| Rated Voltage | 400 V AC, 50 Hz |
| Operating Voltage Range | 380 V – 460 V |
| Rated Pulse Current | 6 Amp |
| Power Consumption @ 10 Strokes/min | 0.045 Units/Hr. |
| Impact Force | 125 Kg (min) |
| Weight | 20 Kg |
Chamber Plate Thickness more than 2 mm & Maximum 3mm
| Rated Voltage | 200 V AC, 50 Hz |
| Operating Voltage Range | 220 V |
| Rated Pulse Current | 1 Amp |
| Power Consumption @ 10 Strokes/min | |
| Impact Force | 30 Kg (min) |
| Weight | 8 Kg |
Base plate is essential to prevent dent-crack formation of the chamber wall due to continuous hammering. During installation please ensure that the distance between chamber surface and base plate should be 75 mm (at top) & 65 mm (at bottom) to obtain maximum
